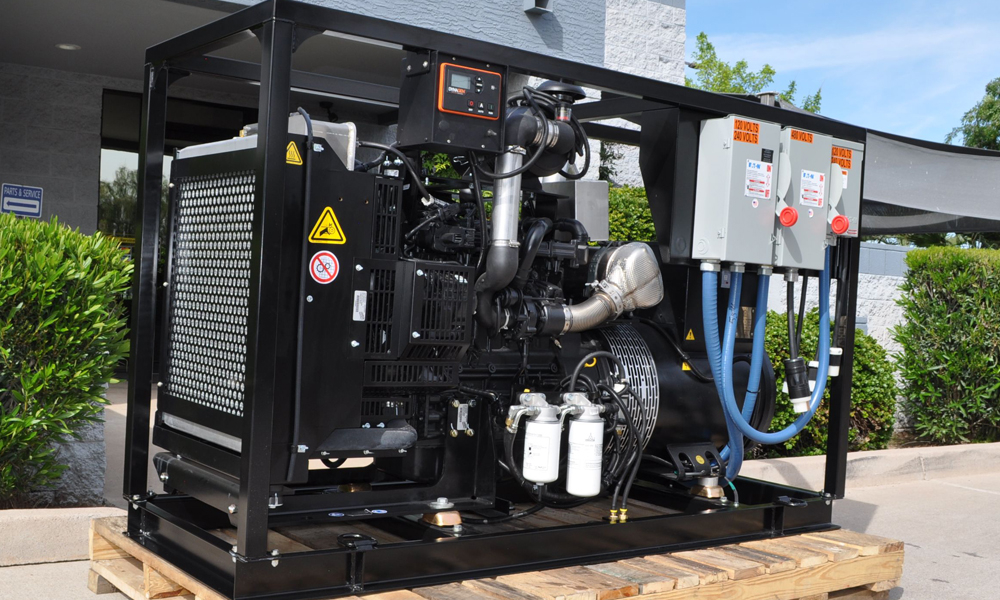

50kwGeneratorhead
Grabber 50KW T4F Deutz Genset_Job #435 (7)
Grabber 50KW T4F Deutz Genset_Job #435 (1)

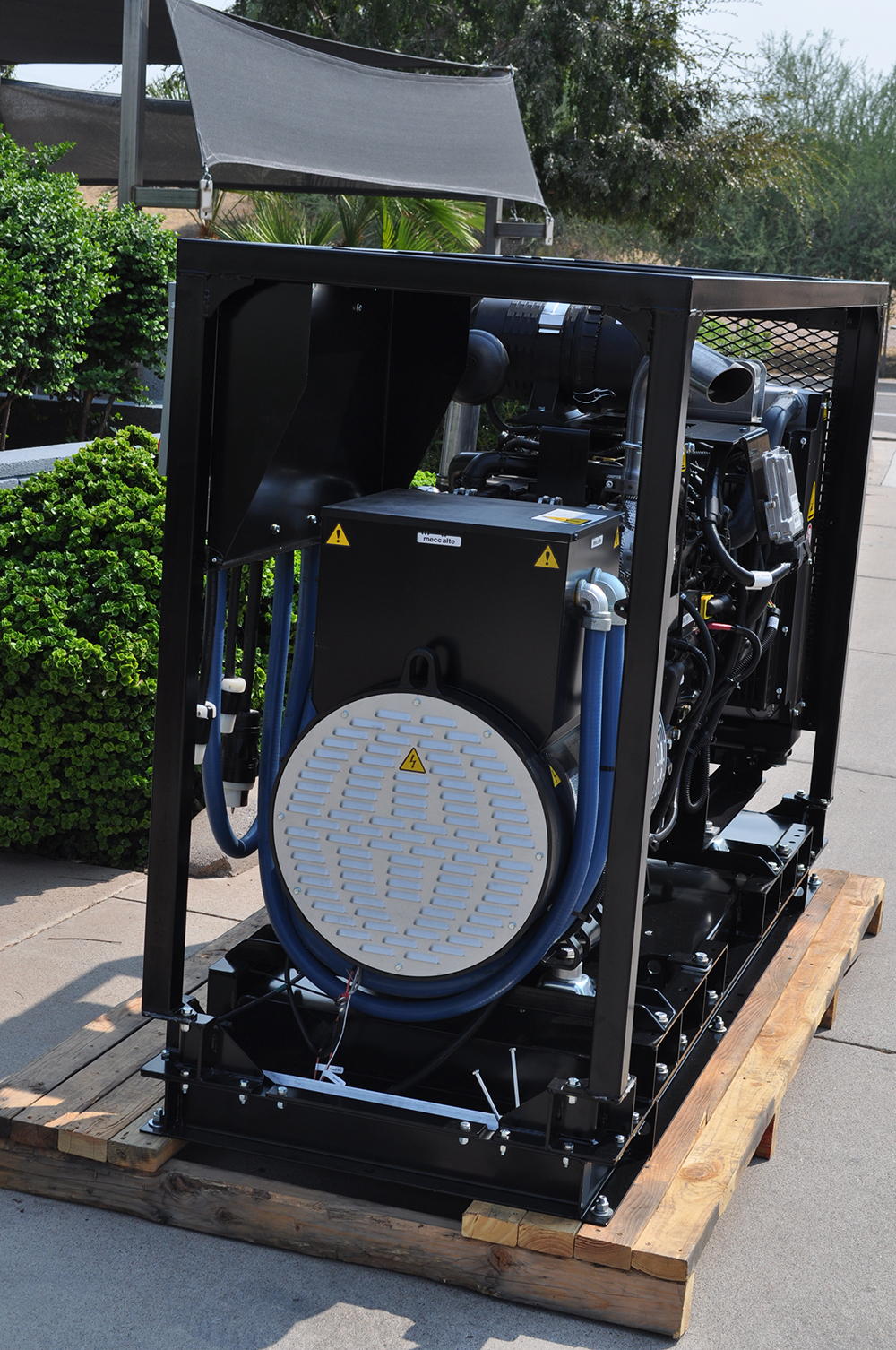

DSC_0024

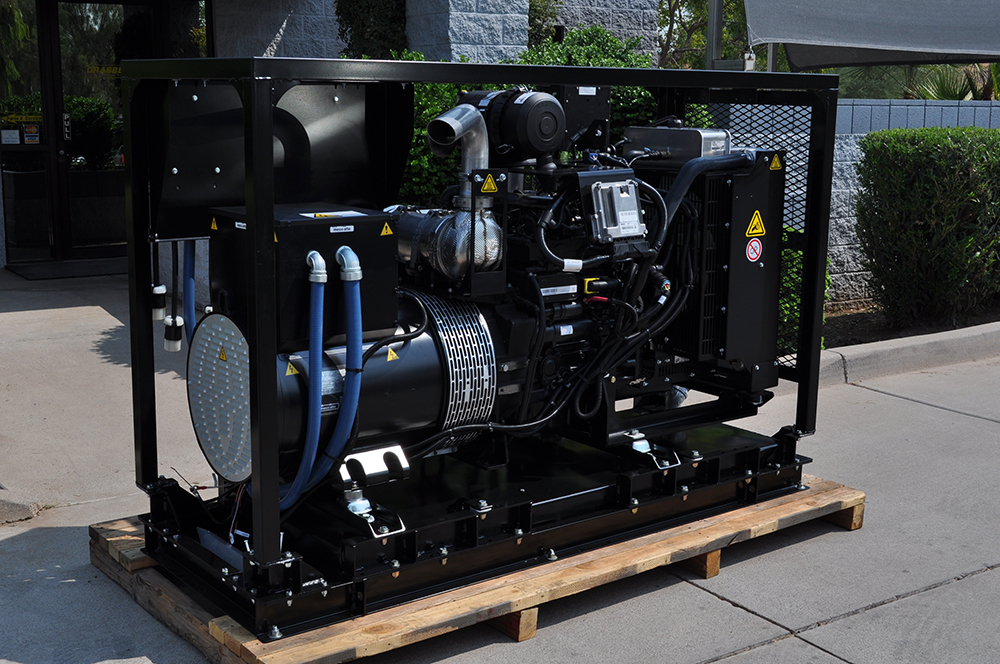

DSC_0022
box truck generator 50kW-2
box truck generator 50kW-3
previous arrow
next arrow

Why do you need a Grabber 50kw Generator?

Built to Start & Run 40 HP Electric Motors Without Soft Starts

The Grabber 50 kW Industrial Diesel Generator is engineered specifically for truck upfits, trailers, and demanding severe-duty jobsite applications. Built to deliver continuous 480V 3-phase power and simultaneous single-phase power at 1800 RPM, this unit eliminates the downtime, complexity, and expense of bulky tow-behind rental generators.

To guarantee uncompromised motor-starting capability, we integrate top-tier components from global leaders:

  • Tier 4 Final Deutz Diesel Engine: High-output, clean-burning power unit built for continuous performance under heavy load without requiring DEF or regen cycles.

  • Upsized MeccAlte Alternator: Specially paired with a 480 volt, 70A and Total Plus protected generator alternator to absorb massive inrush starting currents—allowing you to start and continuously run electric saws up to 40 HP (Code “H” or better).

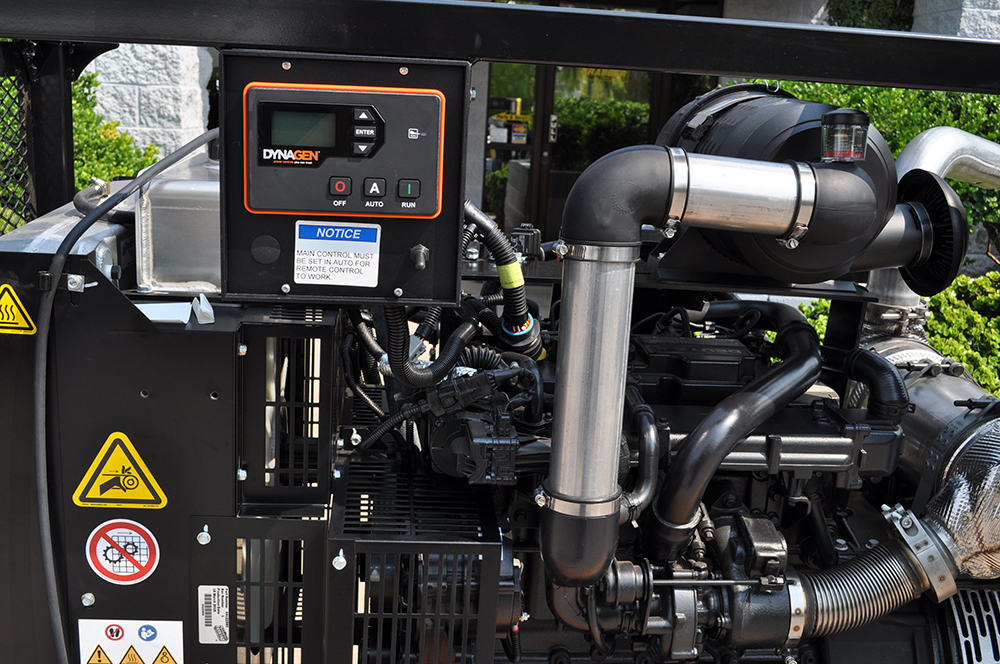

  • DynaGen Digital Controller: Features an intuitive remote control that monitors engine and generator performance.

Mounted on a heavy-duty formed steel skid base with captive isolator mounts, protected by a square steel tubing frame and aluminum top cover, the Grabber 50 kW 480 volt generator set is built tough to withstand extreme jobsite environments.

EMAIL US HERE
CALL US NOW

50 KW GENERATOR

Product Description

Engineered for demanding industrial jobsites and truck or trailer upfits, our 50 kW 480 volt diesel generators operate at a continuous 1800 RPM to deliver steady, heavy-duty power.

Specifically upsized and tuned by Grabber Power Products, this unit features a Tier 4 Final Deutz 3.6L engine and an upsized MeccAlte generator alternator with a 70A main breaker. It is built to start and continuously run electric concrete cutting equipment and severe-duty motors up to 40 HP Code “H” or better—even without a soft start.

  • Engine: Tier 4 Final Deutz 3.6L Diesel Engine

  • Alternator: MeccAlte 100+kW generator alternator with Total Plus protective coating and 70A main breaker

  • Motor Starting Capacity: Sized to START and CONTINUOUSLY RUN up to 40 HP Code “H” or better motors

  • Controls: DynaGen digital remote start/stop controller

  • Electrical Output: 480 Volt, 3-Phase, 60 Hz

  • Sub-Base Fuel Tank (Optional): Sub-base fuel tank built into a formed steel channel skid base

  • Starting Power: 12 Volt system with installed engine block heater and battery package

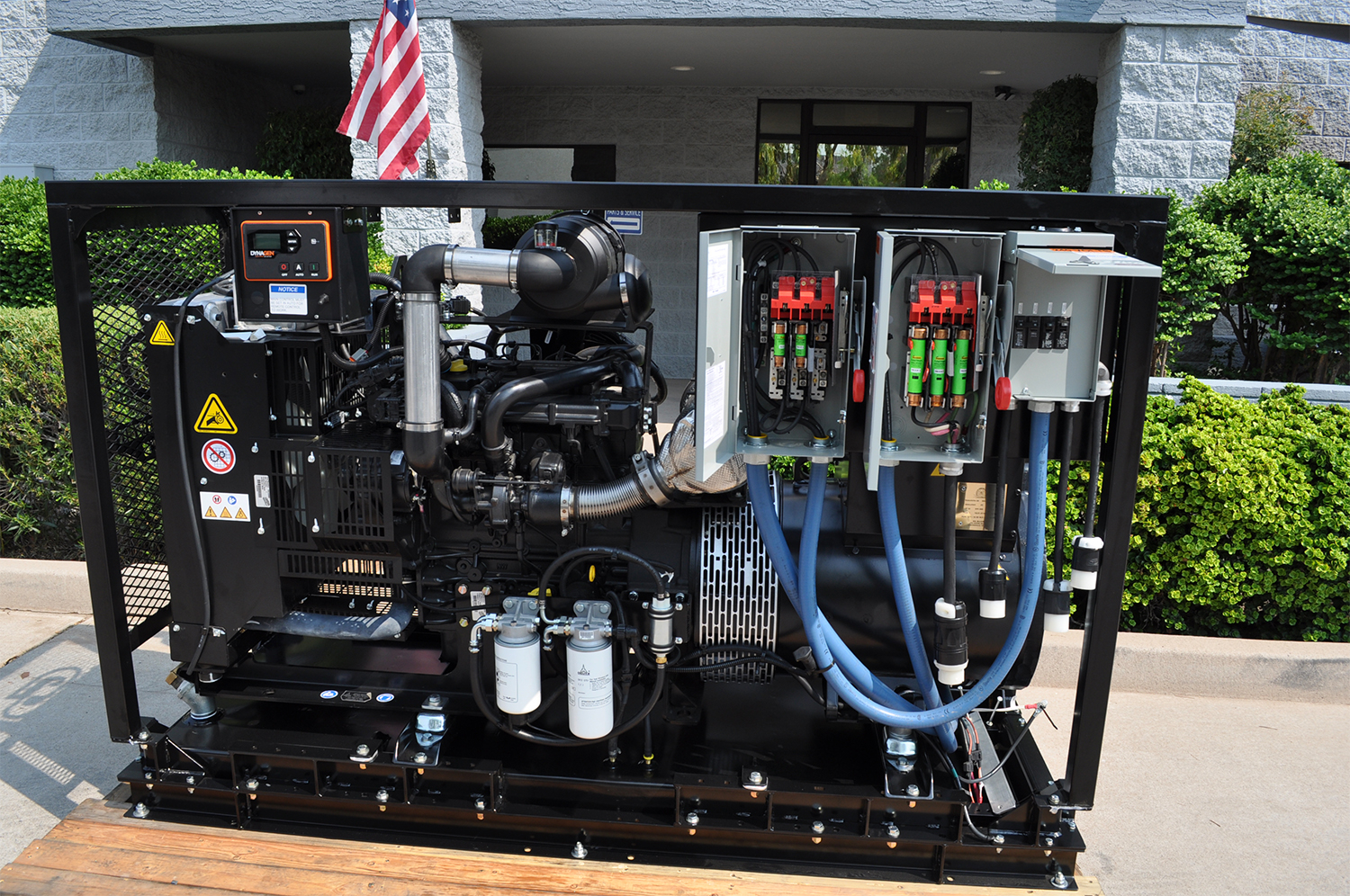

  • Disconnects & Distribution: Optional fused disconnects (480V 3-phase / 240V 1-phase) and single-phase load center switchgear

  • Protection Frame: Square tubing steel frame with aluminum top cover, and radiator rock guard

  • Handling & Rigging: Optional formed steel forklift pockets. 1/4″ steel handling plates with 1″ diameter lifting holes for rigging

  • Dimensions & Weight: 31″ W x 75″ L x 50.5″ H | Approx. 2,150 lbs (Gen set only 84″ skid assembly dimensions: 31″ W x 84″ L x 52-7/16″ H; weight approx. 2,500 lbs)

  • Optional Skids: 90″ skid assembly dimensions: 31″ W x 90″ L x 52-7/16″ H; weight approx. 2,500 lbs

Standard Features

  • Tier 4 Final Deutz 3.6L Diesel Engine: High-output, clean-burning diesel engine built for high-demand industrial performance.

  • MeccAlte 100+kW Generator Alternator: Features Total Plus protective coating for severe environments and an integrated 70-amp main breaker.

  • 40 HP Motor Starting Power: Specially designed to START and CONTINUOUSLY RUN up to a 40 HP Code “H” or better motor without needing a soft start.

  • DynaGen Digital Controller: Remote start/stop digital control panel for easy engine and generator operation.

  • Engine Block Heater: Factory-installed to ensure easy starting in cold weather conditions.

  • Heavy-Duty Formed Channel Skid: 4″ x .187″ formed channel sheet metal skid base with captive isolator mounts (2″ height spacing between skid and gen).

  • Integrated Rigging & Handling: Features 1/4″ steel plates with 1″ diameter handling holes, floor mounting holes, and battery mount.

Common Options

  • Channel Skid Base Assembly, 84″: Standard 31″ W x 84″ L x 4″ H formed channel steel skid base.

  • Channel Skid Base Assembly, 90″: Standard 31″ W x 90″ L x 4″ H formed channel steel skid base.

  • Sub-Base Fuel Tank Skid Package: Integrated sub-base fuel tank with .187″ formed sheet metal base, 12V battery package, and durable powder coat finish.

  • Step-Down Single-Phase Power Package: Includes wired and installed switchgear, top square tube frame, and single-phase load center with 120V & 250V outlets (20A 120V, 30A 120V, and 20A 250V twist-lock receptacles). Fused Disconnects (480V / 240V): Heavy-duty fused disconnect switch boxes (600V 60A / 240V 60A) with blue liquid-tight conduit and motor wire pigtails.

  • Forklift Pocket Kit: 8″ W x 4″ H formed steel tube pockets (3-piece configuration) allowing easy end and side forklift access.

  • Aluminum Top Cover & Shelf Options: Lightweight aluminum top cover with side flanges, featuring cutout access for radiator cap.

  • Remote Mimic Control Panel: Remote-mounted DynaGen mimic panel with a 20′ extension cable housed in a protective aluminum enclosure.

  • Radiator Guard: Protective rock guard installed to safeguard the Deutz radiator from jobsite debris.

Brand Partners & Quality Components

Brand Partners & Quality Components

At Grabber Power Products, we engineered our industrial diesel generator sets from the ground up to handle severe-duty motor-starting applications. Rather than relying on standard commercial generator assemblies, we partner with world-class component manufacturers to build custom power systems engineered to start and run heavy concrete cutting machinery without soft starts.

1. Diesel Engine Technology: Deutz Engines

  • Clean, Powerful, & Reliable: We power our generator sets with industrial Deutz Tier 4 Final diesel engines.

  • Advanced Engine Controls: Featuring electronic engine management (EMR4 and/or EMR5) and high fuel efficiency, Deutz engines deliver consistent 1800 RPM power needed for long shifts under heavy electrical loads.

  • Global Support: Jobsite owners benefit from proven engine reliability and access to a worldwide Deutz parts and service network.

2. Generator Alternators & Power Ends: MeccAlte

  • Upsized Generator Ends: To manage massive initial power surges when starting 30 HP and 40 HP electric motors, we pair our builds with upsized MeccAlte generator alternators.

  • Severe-Environment Protection: Equipped with MeccAlte’s Total Plus protective coating, these alternators resist moisture, dust, and jobsite debris.

  • Integrated Circuit Protection: Includes heavy-duty main circuit breakers for maximum system safety.

3. Digital Engine Monitoring & Controls: DynaGen

  • Intuitive Remote Control: Every Grabber generator set features DynaGen digital control panels (including the Tough Series / TG-410).

  • Real-Time Monitoring: Clear digital displays track engine parameters, oil pressure, coolant temperatures, and electrical output.

  • Flexible Mounting: Available as flush-mounted enclosure controls or remote mimic panels with 20-foot extension harnesses.

Built & Integrated by Grabber Power Products

While we source world-class components from Deutz, MeccAlte, and DynaGen, the structural integrity and electrical distribution are 100% Grabber built:

  • Custom Formed Steel Skids & Sub-Base Tanks built for truck or trailer mounting.

  • Heavy-Duty Weatherproof Enclosures with lockable access doors and powder-coat finishes.

  • Tailored Step-Down Switchgear & Fused Disconnects configured for 480V 3-phase and single-phase jobsite tools.
