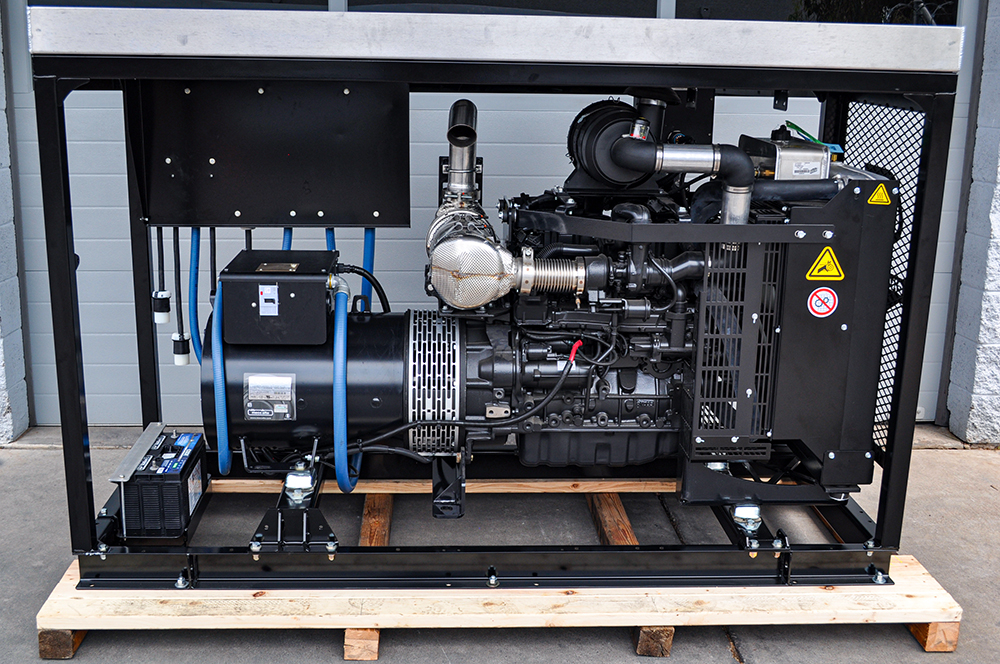

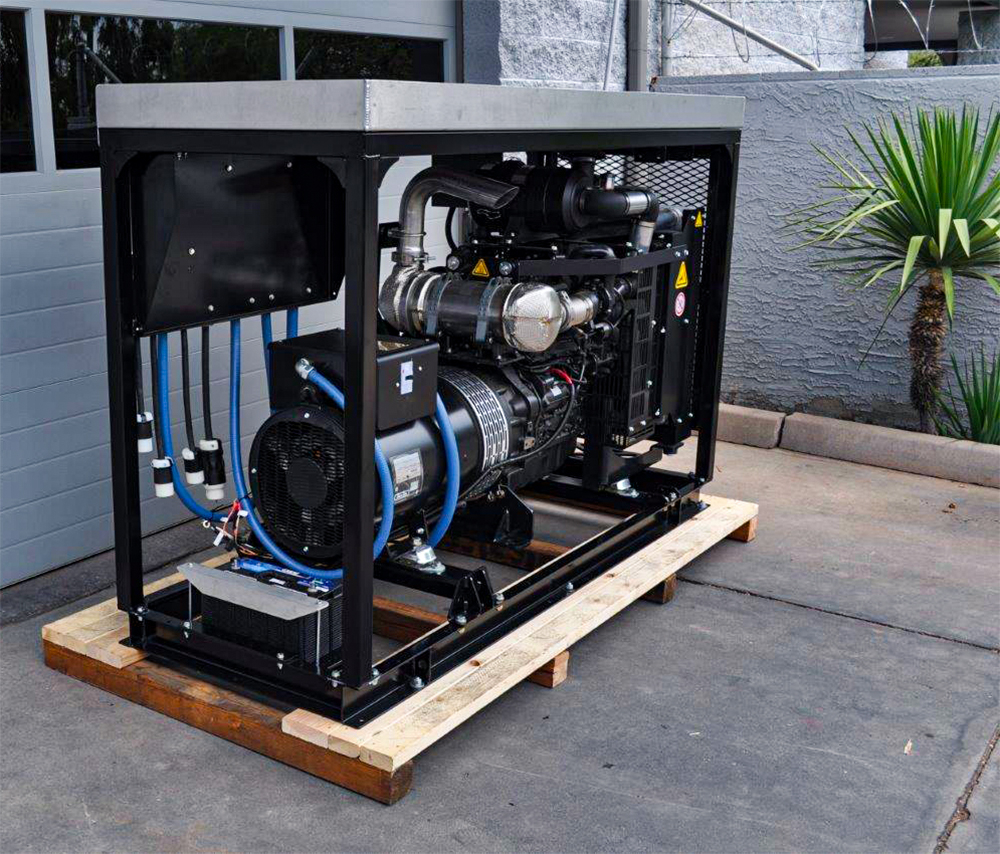

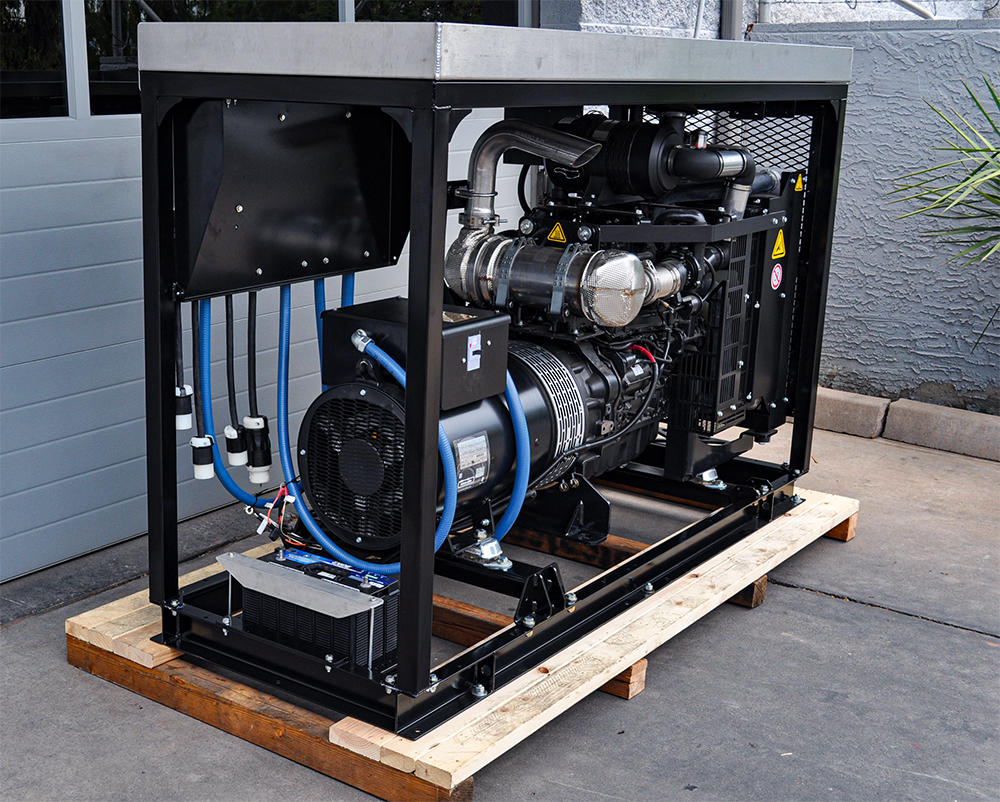

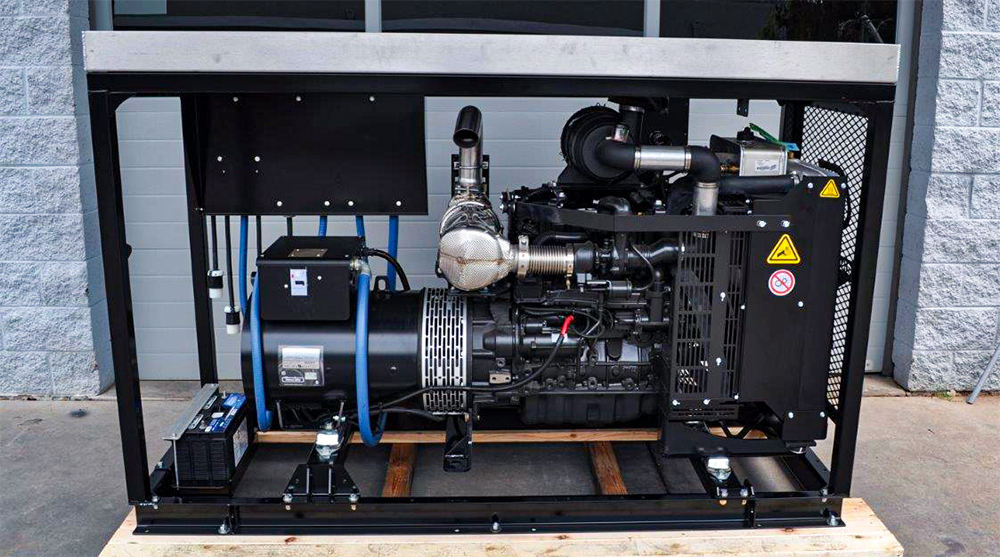

• Tier 4 Final Deutz 2.9L Diesel Engine: Reliable, clean-burning diesel engine equipped with EMR5 controller.

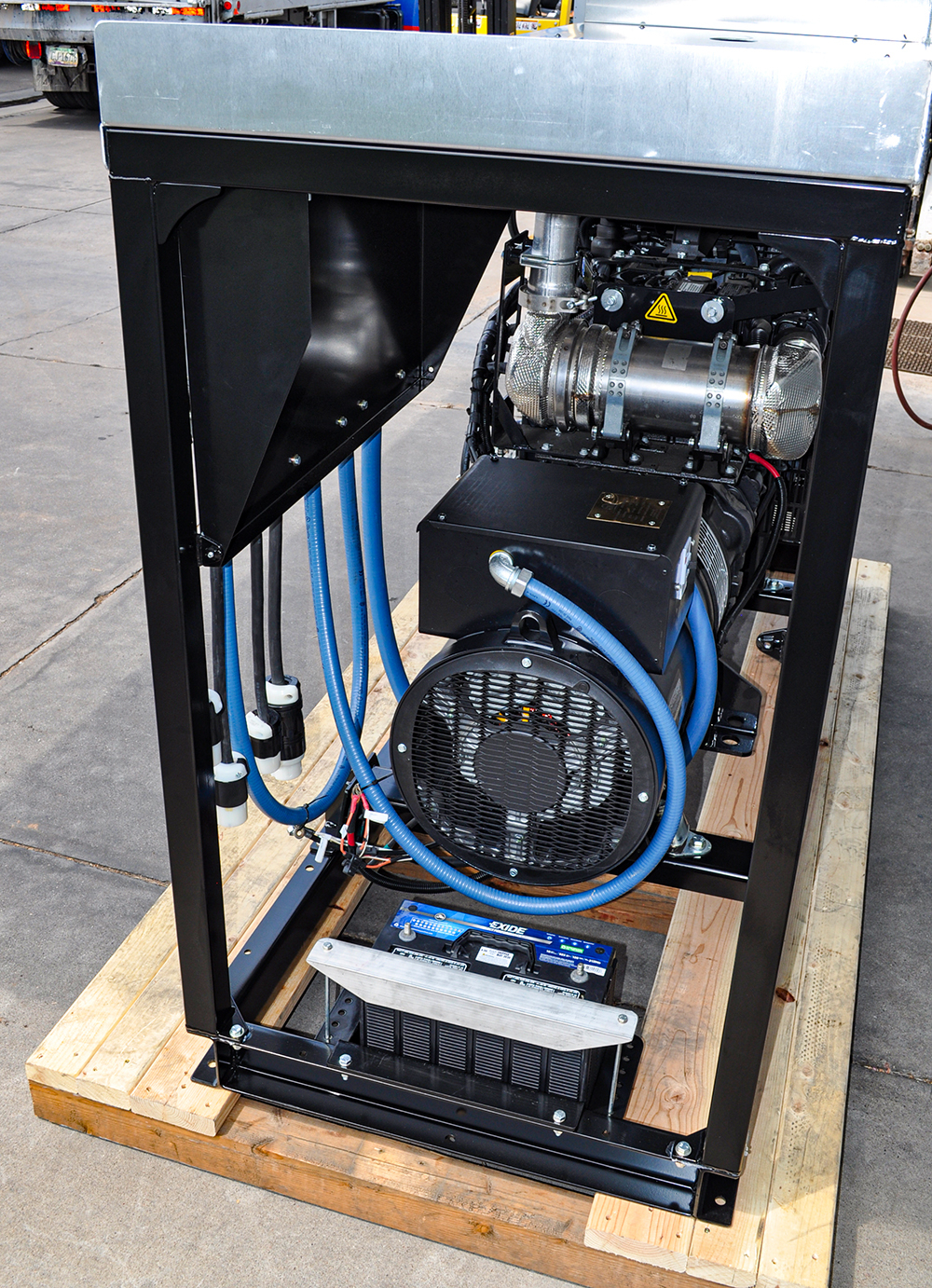

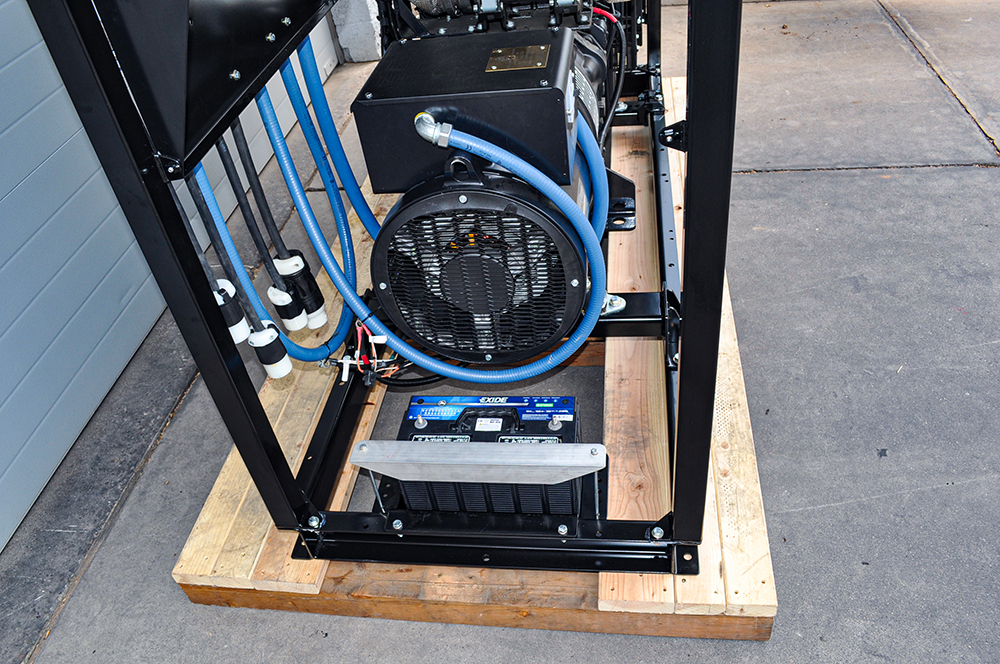

• MeccAlte 80kW Generator Alternator: Features Total Plus protective coating for severe environments and an integrated 60-amp main breaker.

• 30 HP Motor Starting Power: Specially designed to START and CONTINUOUSLY RUN up to a 30 HP Code “H” or better motor without needing a soft start.

• DynaGen Digital Controller: Remote start/stop digital control panel for easy engine and generator operation.

• Engine Block Heater: Factory-installed to ensure easy starting in cold weather conditions.

• Heavy-Duty Formed Channel Skid: 4″ formed channel steel skid base with captive isolator mounts for smooth, low-vibration operation.

• Integrated Rigging Points: Includes top lifting/picking eyes, floor mounting holes, and secure battery mounting.

• Radiator Guard: Protective rock guard installed to safeguard the Deutz radiator from jobsite debris

• Channel Skid Base Assembly (72″ Body): Heavy-duty formed steel channel base designed for truck, trailer, or stationary mounting.

• 45-Gallon Sub-Base Fuel Tank Skid Package: Integrated 45-gallon single-wall fuel tank built into a .187″ formed sheet metal skid base (Tank: 26″ W x 68″ L x 6″ H; Skid: 31″ W x 72″ L x 8″ H).

• Step-Down Single-Phase Power Package: Includes wired and installed switchgear, top square tube frame, and single-phase outlets (20A 120V, 30A 120V, and 20A 250V twist-lock receptacles).

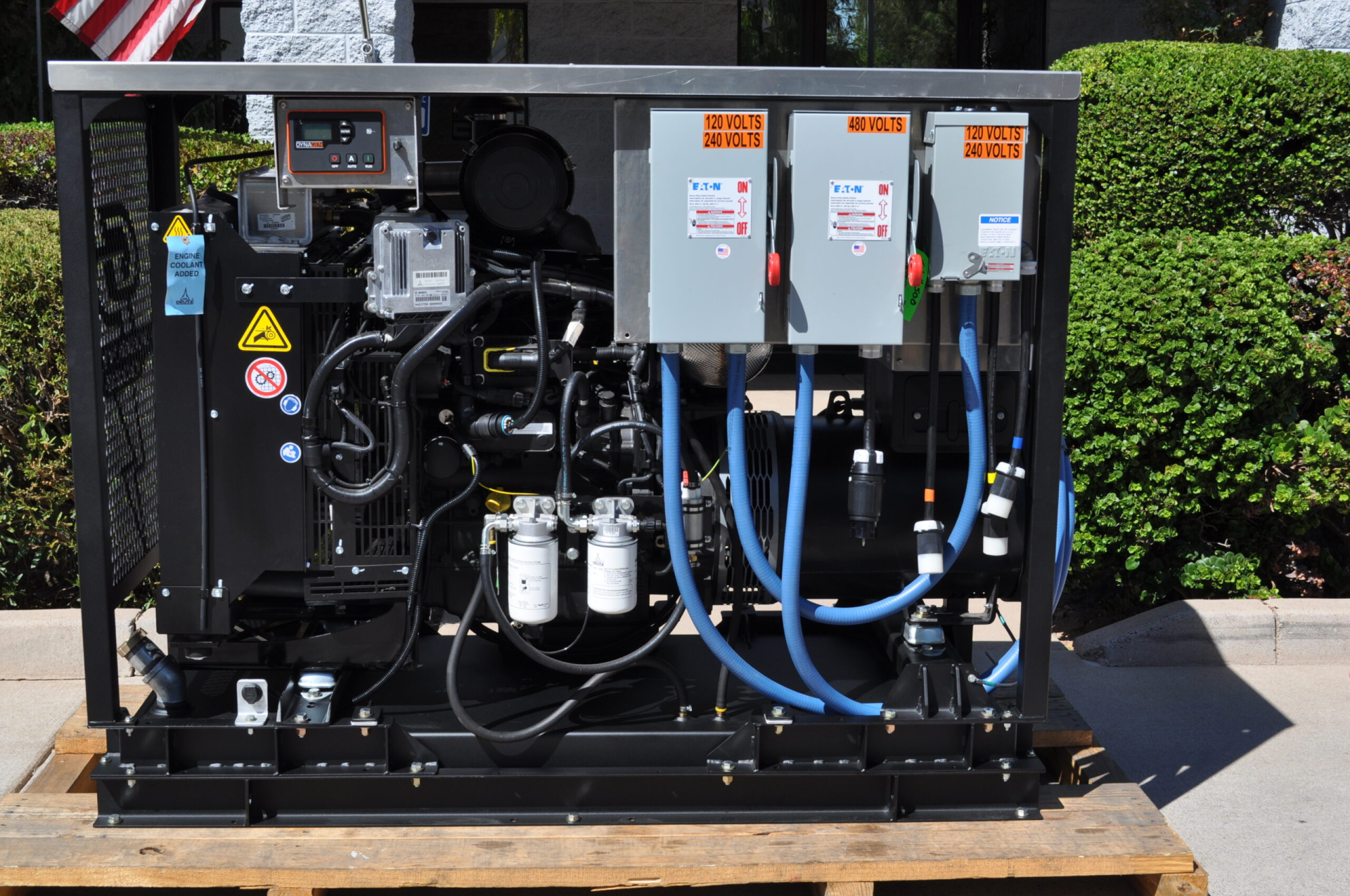

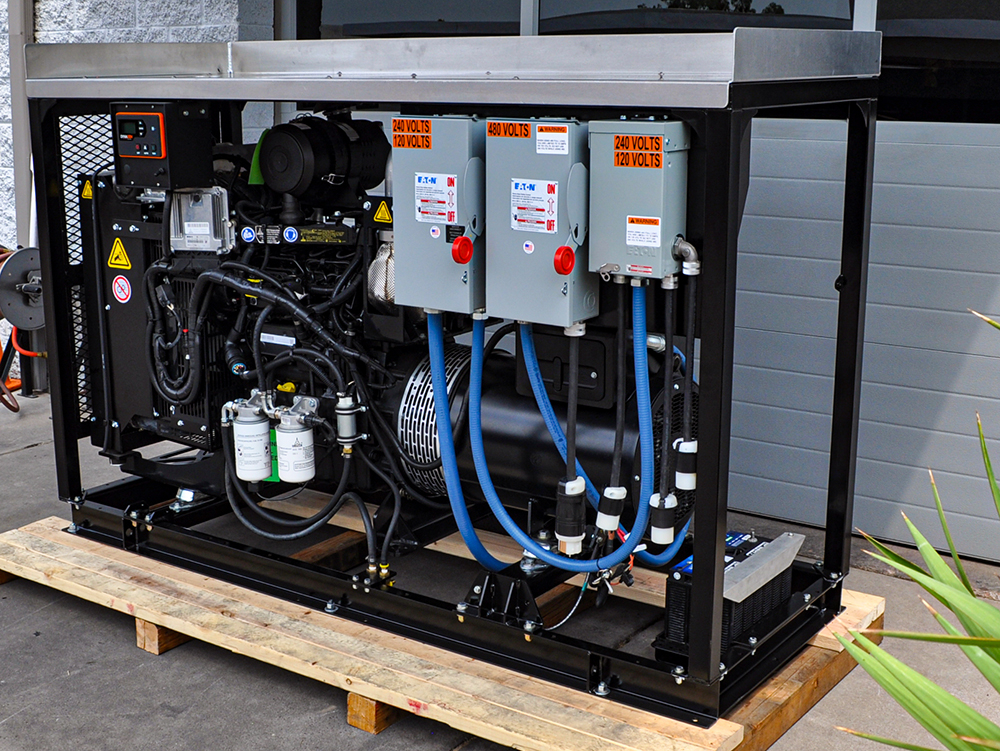

• Fused Disconnect Package (480V / 240V): Heavy-duty fused disconnect switch boxes with blue liquid-tight conduit and motor wire pigtails.

• Forklift Pocket Kit: 8″ W x 4″ H formed steel tube pockets (3-piece configuration) allowing easy end and side forklift access.

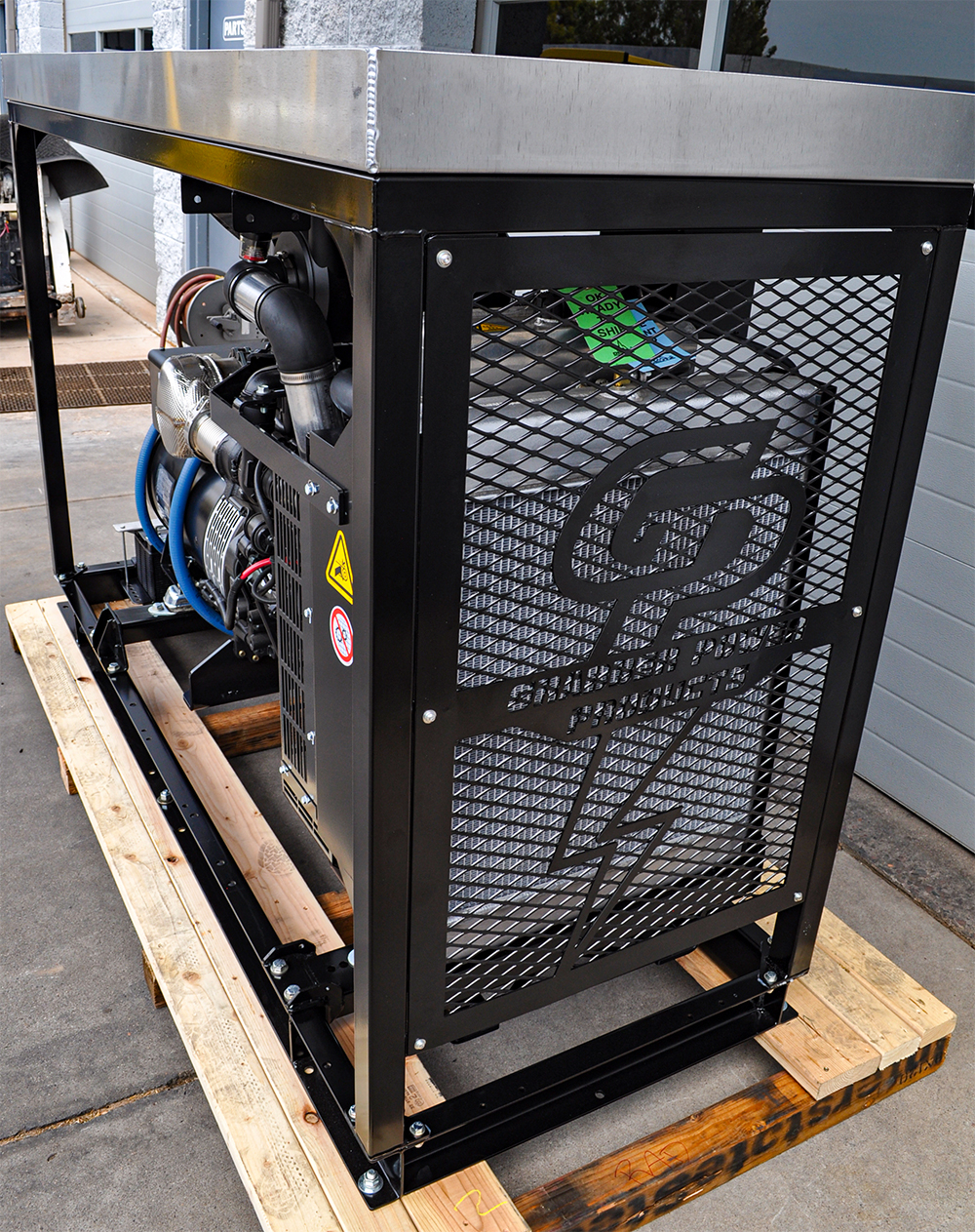

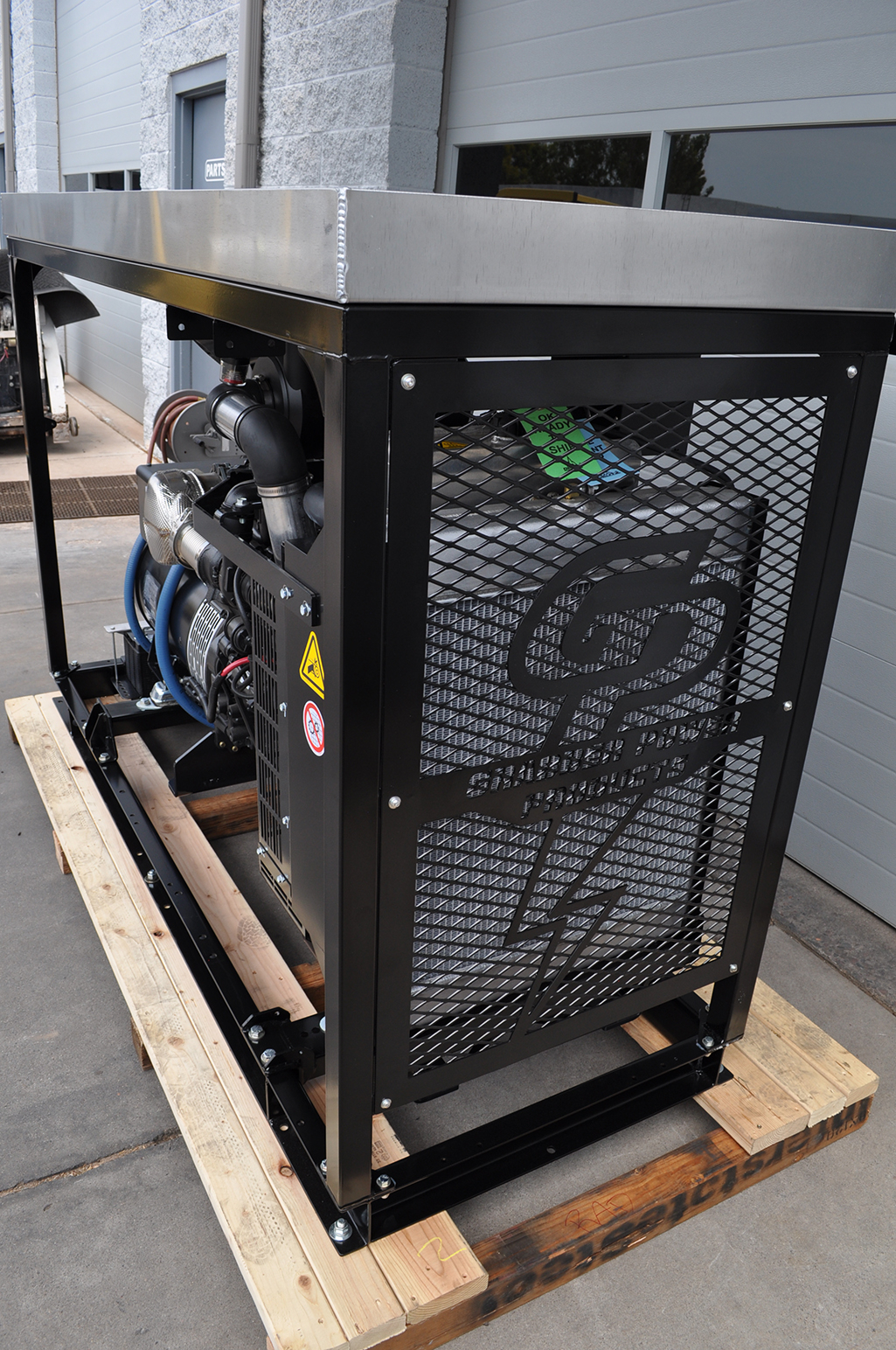

• Aluminum Top Cover & Shelf Options: Lightweight aluminum top cover with side flanges, featuring cutout access for radiator cap and muffler stack.

• Remote Mimic Control Panel: Remote-mounted DynaGen mimic panel with a 20′ extension cable housed in a protective aluminum enclosure.

Brand Partners & Quality Components

At Grabber Power Products, we engineered our industrial diesel generator sets from the ground up to handle severe-duty motor-starting applications. Rather than relying on standard commercial generator assemblies, we partner with world-class component manufacturers to build custom power systems engineered to start and run heavy concrete cutting machinery without soft starts.

1. Diesel Engine Technology: Deutz Engines

• Clean, Powerful, & Reliable: We power our generator sets with industrial Deutz Tier 4 Final diesel engines.

• Advanced Engine Controls: Featuring electronic engine management (EMR5) and high fuel efficiency, Deutz engines deliver consistent 1800 RPM power needed for long shifts under heavy electrical loads.

• Global Support: Jobsite owners benefit from proven engine reliability and access to a worldwide Deutz parts and service network.

2. Alternators & Power Ends: MeccAlte

• Upsized Generator Ends: To manage massive initial power surges when starting 30 HP and 40 HP electric motors, we pair our builds with upsized MeccAlte generator alternators.

• Severe-Environment Protection: Equipped with MeccAlte’s Total Plus protective coating, these alternators resist moisture, dust, concrete slurry, and abrasive jobsite debris.

• Integrated Circuit Protection: Includes heavy-duty main circuit breakers for maximum system safety.

3. Digital Engine Monitoring & Controls: DynaGen

• Intuitive Remote Control: Every Grabber generator set features DynaGen digital control panels (including the Tough Series / TG-410).

• Real-Time Monitoring: Clear digital displays track engine parameters, oil pressure, coolant temperatures, and electrical output.

• Flexible Mounting: Available as flush-mounted enclosure controls or remote mimic panels with 20-foot extension harnesses for truck-cab or trailer-side monitoring.

Built & Integrated by Grabber Power Products

While we source world-class components from Deutz, MeccAlte, and DynaGen, the structural integrity and electrical distribution are 100% Grabber engineering:

• Custom Formed Steel Skids & Sub-Base Tanks built for truck or trailer mounting.

• Heavy-Duty Weatherproof & Sound-Attenuated Enclosures with lockable access doors and powder-coat finishes.

• Tailored Step-Down Switchgear & Fused Disconnects configured for 480V 3-phase and single-phase jobsite tools.
